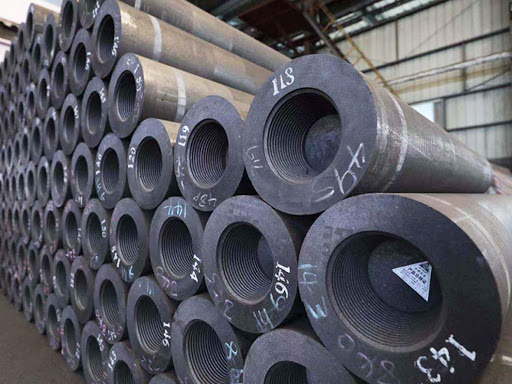

Ordinary Graphite Electrode

Graphite electrode is an important conductive material in electric smelting industry, has good conductivity, thermal conductivity, high mechanical degree, high temperature oxidation resistance, good corrosion resistance, is widely used in electric arc furnace, mineral hot furnace (Production of iron alloy, pure silicon,)yellow phosphorus, matte, calcium carbide, etc.) Resistance furnace, such as the production of graphite electrode graphitization furnace, glass melting furnace, the production of silicon carbide furnace, etc. has become an important part of contemporary industrial raw materials.
The graphite electrode is divided into normal graphite electrodes, impregnated graphite electrodes, high power graphite electrode and ultra-high power graphite electrode.

Ordinary Graphite Electrode

Product Specification:

project		unit	Nominal diametermm
			75-130		150-225		250-300			300-450			500-800
			Optimal level	Level 1	Optimal level	Level 1	Optimal level	Level 1	Optimal level	Level 1	Optimal level	Level 1
The resistivity ≤	electrode	μΩm	8.0	10.0	8.0	10.0	8.0	10.0	8.5	10.0	8.5	10.0
	joint		7.5		7.5		7.5			7.5			7.5
Flexural strength≥	electrode	MPa	10.0		10.0		8.0			7.0			6.5
	joint		15.0		15.0		15.0			15.0			15.0
Modulus of elasticity≤	electrode	GPa	9.3		9.3		9.3			9.3			9.3
	joint		14.0		14.0		14.0			14.0			14.0
Bulk density≥	electrode	g/cm3	1.60		1.60		1.60			1.58			1.56
	joint		1.70		1.70		1.70			1.70			1.70
Coefficient of thermal expansion≤ （100℃-600℃）	electrode	10-6/℃	2.9		2.9		2.9			2.9			2.9
	joint		2.7		2.7		2.7			2.7			2.7
ash≤		％	0.5		0.5		0.5			0.5			0.5
Note: ash and Coefficient of thermal expansion are used as reference indexes
